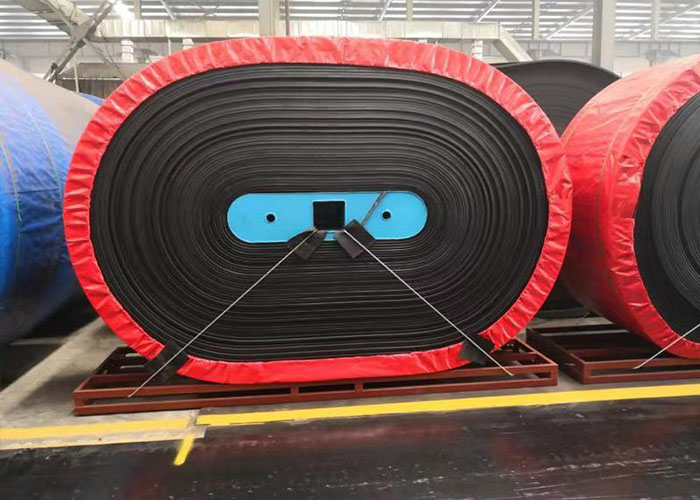

Steel Cord Conveyor Belt
Application:

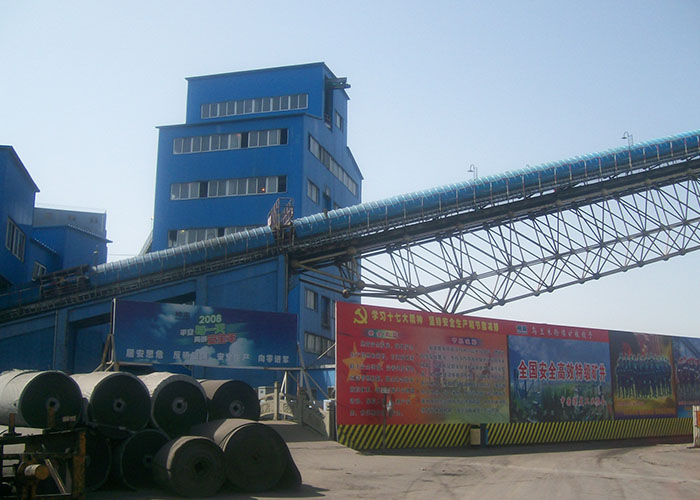

· Used in coal, ore, port, metallurgical, power and chemical industries,
suitable for long distance and heavy load transportation of materials.
· Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366
and AS1333.
· Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant,
Heat-resistant and Chemical-resistant.

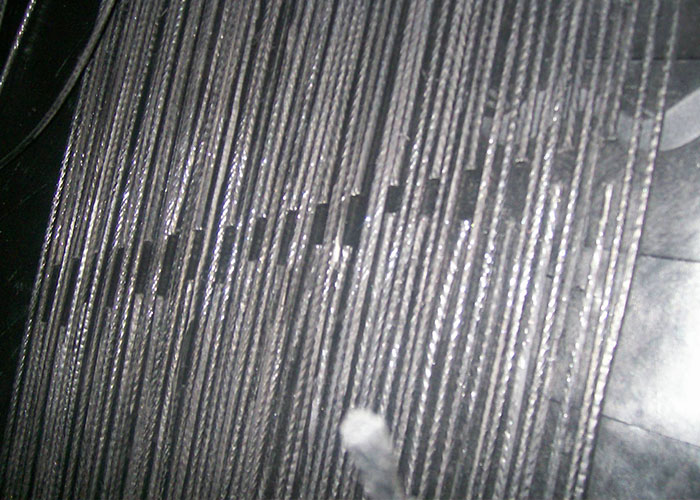

Steel cord structure:
Open type steel cord Standard steel cord
Advantage of open type steel cord :
l Special structure among the cords
l Tight adhesion between the steel cords and core rubber
l Excellent anti air-penetration performance
l Avoid the corrosion of the steel cords in case of any damage to the carcass
l Extend the life of the belting Steel Cord from the joint venture public listed company—Fasten Group

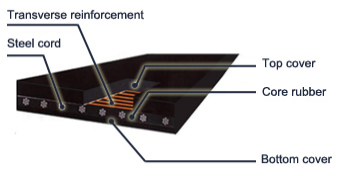

Belt Structures:
Technical parameters for reference (DIN22131)
Please refer to the EXCEL TABLE
| Standard and Main Technical Data | ||||||||
| TYPE | Standard and Main Technical Data | |||||||
| Normal/Conventional | GB/T9970 ,DIN22131, JIS6369 ,AS1333 | |||||||
| Fire Resistant | MT668,HG2539,DIIN22131 | |||||||
| Conventional Fire Resistant | HG2539II,DIN2203,DIN22131 | |||||||
| Heat Resistant | HG/T2297,ISO4195 | |||||||
| Abrasion Resistant | Shore Abrasion≤90mm³ DIN22131-W,Shore Abrasion≤70mm³AS1333-A | |||||||
| Heat&Abrasion Resistant | Heat Resistant≤125℃ Shore Abrasion≤150mm³ | |||||||
| Acid、Alkali&Oil Resistant | HG4-846,HG/T3714,RMA(MOR,OR) | |||||||
| Cold Resistant | Fragility Temperature-50℃~-20℃ HG/T3647 | |||||||
| Ozone Resistant | (Ozone Density)50PPHM 40℃/72h(No crack) | |||||||
| Classification of steel cord conveyor belting | |||||||||||
| By difference of belting construction, can offer: | |||||||||||
| Standard construction steel cord belting | |||||||||||
| Standard construction steel cord belting can be produced with the following rubber cover properties: | |||||||||||
| Abrasion-resistant | |||||||||||
| Cold resistant | |||||||||||
| Fire-resistant | |||||||||||
| Heat resistant | |||||||||||
| Impact resistant | |||||||||||
| Rip resistant steel cord belting | |||||||||||
| Nylon fabric breaker | |||||||||||
| HE steel breaker | |||||||||||
| Steel cords | |||||||||||
| Steel cord belting with rip detection system | |||||||||||
| Impact resistant steel mesh belting |
