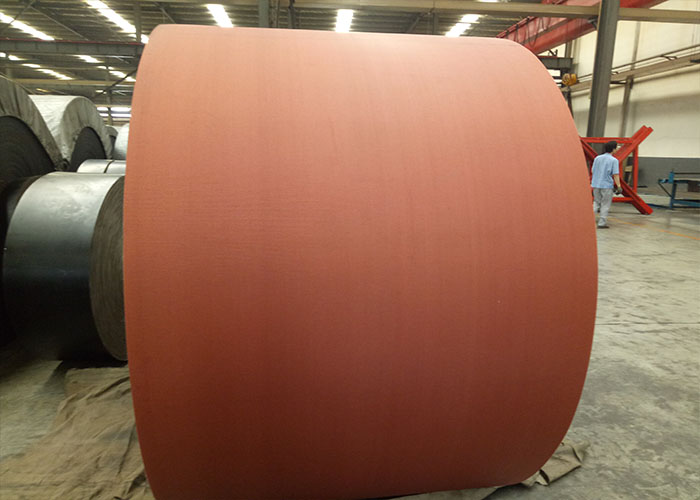

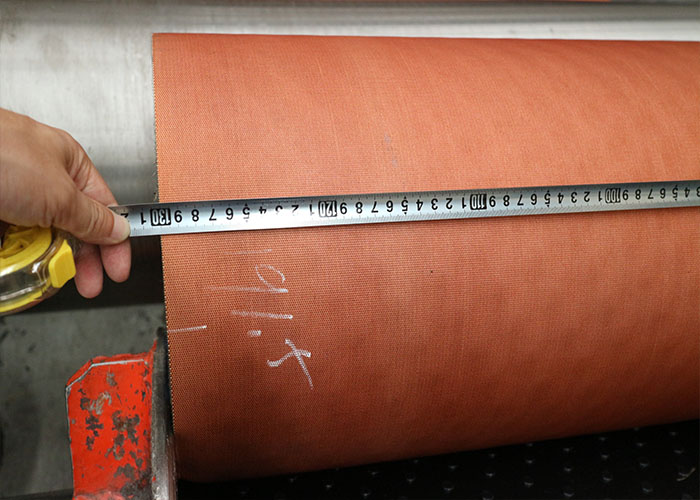

Textile Sliding Belts:
Sliding belt conveyors are used when materials are removed on the carrying side in a sliding motion,e.g. over a steel ,plastic,or wooden bed.Sliding belt are paticularly wear resistant thanks to a special bottom ply in the tension member.The belts have a low coefficient of sliding friction. Correct belt alignment on the conveyor is ensured by the latest continuous vulcanisation process and a purpose-designed fabric.
Tried and tested in various applications:
Automotive industry
Rubber industry
Woodworking /sawmill
Household garbage processing
Recycling plants
Scrap material processing
TECHNICAL DATA FOR REFERENCE
Range | |||
Carcass Thickness In mm | Carcass Weight In kg/m2 | Recomm.min.pully diameter (drive) In mm | |
2-ply belts | |||
315/2 | 1.9 | 2.5 | 200 |
400/2 | 2.3 | 2.8 | 250 |
500/2 | 2.9 | 3.0 | 315 |
630/2 | 3.3 | 4.1 | 400 |
800/2 | 4.0 | 4.6 | 500 |
3-ply belts | |||
500/3 | 3.0 | 3.6 | 400 |
630/3 | 3.6 | 4.1 | 500 |
800/3 | 4.5 | 4.4 | 500 |
1000/3 | 5.1 | 6.1 | 630 |
1250/3 | 6.2 | 6.8 | 800 |
4-ply belts | |||
630/4 | 4.1 | 4.7 | 500 |
800/4 | 4.9 | 5.4 | 630 |
1000/4 | 6.1 | 5.8 | 800 |
1250/4 | 7.0 | 8.0 | 800 |
1600/4 | 8.5 | 1000 | |
5-ply belts | |||
800/5 | 5.2 | 5.9 | 630 |
1000/5 | 6.2 | 6.7 | 800 |
1250/5 | 7.7 | 7.2 | 1000 |
1600/5 | 8.8 | 10.0 | 1000 |
2000/5 | 10.7 | 11.2 | 1250 |
