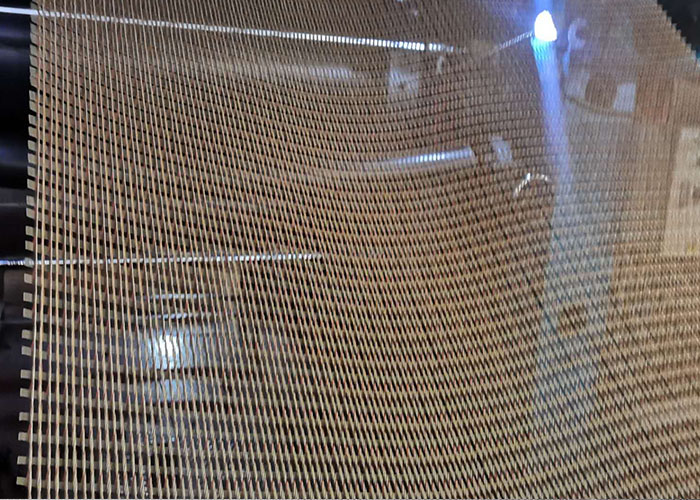

HE Straight Anti-impact and Anti-tearing Steel Mesh
Latitude and longitude of this product use the high elongation and the open style special structural steel curtain line,with good binding characteristic with the rubber ,suitable for substitute of the chemical fiber or the steel wire conveyor belt .It can be applied in the harsh situation, such as steel mill,carbon factories, the quarry, and be solid material handing field and so on.
| Major technical parameters of anti-impact and anti-tearing steel mesh | ||||||||||||
| No. | Content | Unit | Strength Serial | Tolerance | ||||||||
| 1 | Minimum Breaking Load in warp | N/mm | 350.00 | 500.00 | 630.00 | 800.00 | 1000.00 | 1250.00 | 1400.00 | 1600.00 | 0,+ | |
| 2 | Tensile strength in weft | N/mm | 90.00 | 90.00 | 90.00 | 125.00 | 125.00 | 175.00 | 175.00 | 175.00 | 0,+ | |
| 3 | Weight | Kg/m2 | 1.85 | 2.45 | 2.95 | 4.15 | 5.00 | 6.35 | 7.05 | 7.90 | ±2.5% | |
| 4 | Thickness | mm | 3.20 | 3.20 | 3.20 | 4.50 | 4.50 | 6.00 | 6.00 | 6.00 | ±0.3 | |
| 5 | Longitudinal | Diameter | mm | 2.00 | 2.00 | 2.00 | 2.85 | 2.85 | 3.90 | 3.90 | 3.90 | ±5.0% |
| Min.Breaking load | N | 3250.00 | 3250.00 | 3250.00 | 5900.00 | 5900.00 | 10100.00 | 10100.00 | 10100.00 | |||
| Elongation at break | % | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | ±2.5 | ||
| C | Cu | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | 67.50 | 67.50 | 67.50 | ±2.5 | ||
| Zn | 36.50 | 36.50 | 36.50 | 36.50 | 36.50 | 32.50 | 32.50 | 32.50 | ±2.5 | |||
| Pitch | mm | 8.33 | 5.81 | 4.63 | 6.67 | 5.38 | 7.04 | 6.25 | 5.50 | |||
| Density | PC/M | 120.00 | 172.00 | 216.00 | 150.00 | 186.00 | 142.00 | 160.00 | 182.00 | ±2.0 | ||
| 6 | Transverse | Diameter | mm | 1.52 | 1.52 | 1.52 | 2.10 | 2.10 | 2.40 | 2.40 | 2.40 | |
| Min.Breaking load | N | 1820.00 | 1820.00 | 1820.00 | 3075.00 | 3075.00 | 4000.00 | 4000.00 | 4000.00 | |||
| Elongation at break | % | 7.50 | 7.50 | 7.50 | 7.50 | 7.50 | 7.50 | 7.50 | 7.50 | ±2.5 | ||
| C | Cu | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | ±2.5 | ||
| Zn | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | 63.50 | ±2.5 | |||
| Pitch | mm | 17.50 | 17.50 | 17.50 | 20.00 | 20.00 | 20.00 | 20.00 | 20.00 | |||
| Density | PC/M | 57.00 | 57.00 | 57.00 | 50.00 | 50.00 | 50.00 | 50.00 | 50.00 | ±5.0 | ||
| 7 | Weft Material | Special-Purpose soaked rubber nylon contton rope ,suited with the rubber agglutination. | ||||||||||
