The Feathers

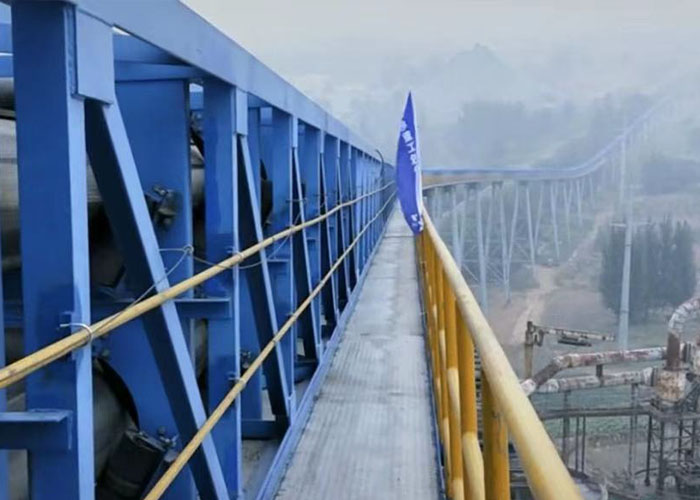

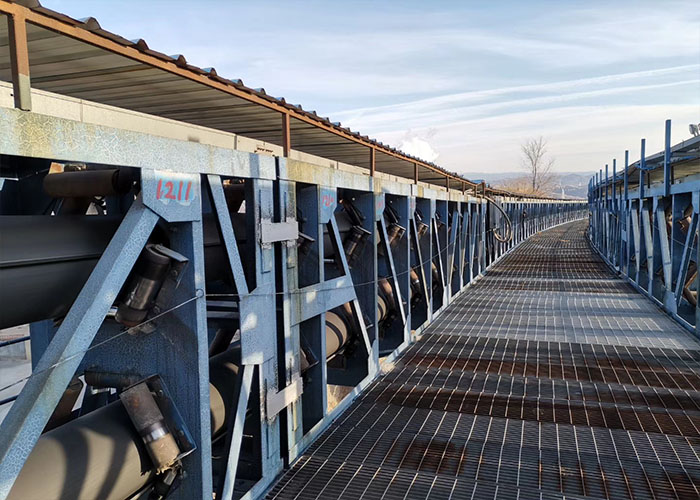

1.Applicable to
Straight line transmission limited
The materials being protected
The external environment needs to be protected
Special requirements, needs the closed environment of the delivery place

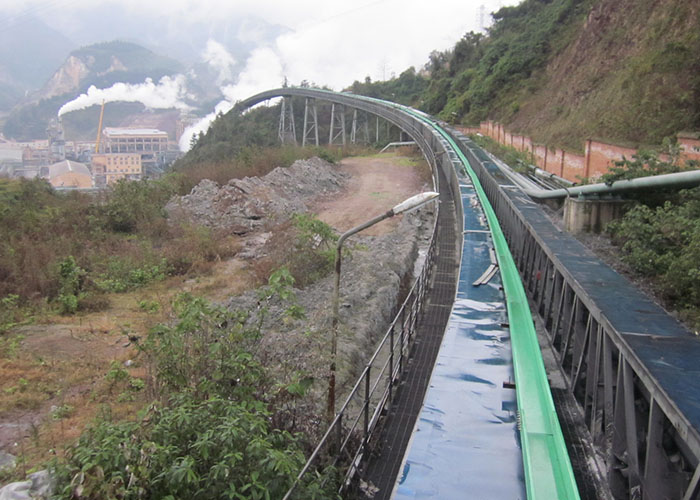

2.Suitable for the long distance, large capacity transmission
3.Long service life, good properties in pipe formation, good abrasion resistance.good flexing resistance, good weather resistance, good ozone resistance.
4.Conveying angle:≤90
5.Skeleton main materials
EP fabric: special designed weft structure
NN fabric: special designed weft structure
ST: Increase the special structure of the weft enhancement layer

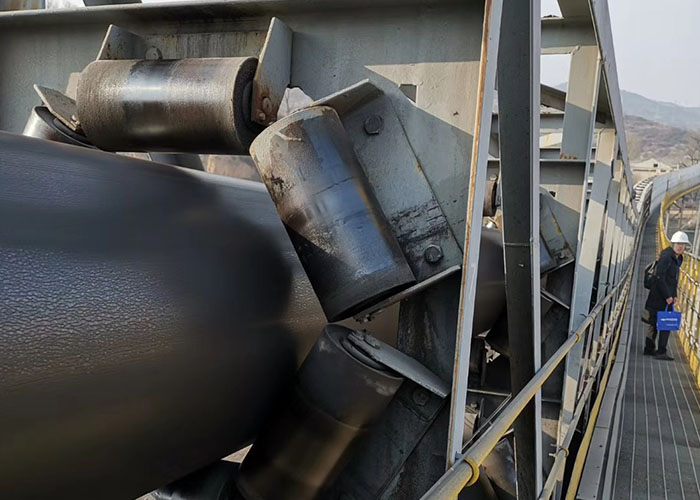

6.Special structure design brings effective horizontal support of pipe conveyor belt, which can ensure the enough rigidity in the service life. Excellent adhesion properties and mechanical properties is the key to ensure the long-term operation.
7. Working width：700-2200mm
| 1.Applicable to ①Straight line transmission limited ②The materials being protected ③The external environment needs to be protected ④Special requirements, needs the closed environment of the delivery place 2.Suitable for the long distance, large capacity transmission 3.Long service life, good properties in pipe formation, good abrasion resistance.good flexing resistance, good weather resistance, good ozone resistance. 4.Conveying angle:≤90 5.Skeleton main materials EP fabric: special designed weft structure NN fabric: special designed weft structure ST: Increase the special structure of the weft enhancement layer 6.Special structure design brings effective horizontal support of pipe conveyor belt, which can ensure the enough rigidity in the service life. Excellent adhesion properties and mechanical properties is the key to ensure the long-term operation. 7.Working width：700-2200mm Technical data for pip conveyor belt | ||||||||||||||
| Pip dia(mm) | Belt width(mm) | Breaking strength(N/mm) | Fabric piles | Cover rubber thickness（mm） | ||||||||||
| 100 | 430 | 250 | 1-2 | 3.0*1.5 | ||||||||||
| 150 | 600 | 160 | 2-3 | 3.0*2.0 | ||||||||||
| 315 | 2-3 | 3.0*2.0 | ||||||||||||
| 315 | 2-3 | 3.0*2.0 | ||||||||||||
| 200 | 700 | 500 | 2-3 | 3.0*2.0 | ||||||||||
| 315 | 2-3 | 5.0*2.0 | ||||||||||||
| 500 | 2-3 | 5.0*2.0 | ||||||||||||
| 400 | 2-3 | 3.0*2.0 | ||||||||||||
| 250 | 1000 | 500 | 2-3 | 3.0*2.0 | ||||||||||
| 400 | 2-3 | 5.0*2.0 | ||||||||||||
| 500 | 2-3 | 5.0*2.0 | ||||||||||||
| 400 | 2-3 | 3.0*2.0 | ||||||||||||
| 500 | 2-3 | 3.0*2.0 | ||||||||||||
| 300 | 1100 | 400 | 2-3 | 5.0*2.0 | ||||||||||
| 500 | 2-3 | 5.0*2.0 | ||||||||||||
| 630 | 3 | 5.0*2.0 | ||||||||||||
| 350 | 1300 | 800 | 4 | 5.0*2.0 | ||||||||||
| 800 | 4 | 5.0*2.0 | ||||||||||||
| 400 | 1600 | 1000 | 5 | 5.0*2.0 | ||||||||||
| Main technical data for pip conveyor belt | ||||||||||||||
| Item | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST2800 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 |
| Tensilestrength in warp(N/mm) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 2800 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
| Max cord diam.mm | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7.2 | 7.6 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 |
| pitch mm | 10+-1.5 | 10+-1.5 | 12+-1.5 | 12+-1.5 | 12+-1.5 | 12+-1.5 | 15+-1.5 | 15+-1.5 | 15+-1.5 | 15+-1.5 | 15+-1.5 | 16+-1.5 | 17+-1.5 | 17+-1.5 |
| 上覆盖层厚度Top cover thickness mm | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | 10 |
| 下覆盖层厚度Bottom cover thickness mm | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 |
| width mm | (No of cords) | |||||||||||||
| ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST2800 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | |
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | 50 | ||||
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 64 | 59 | 55 | 55 |
| 1100 | 105 | 105 | 87 | 87 | 87 | 87 | 69 | 69 | 69 | 69 | 69 | 65 | 61 | 61 |
| 1300 | 124 | 124 | 103 | 103 | 103 | 103 | 83 | 83 | 83 | 83 | 83 | 77 | 72 | 72 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 101 | 101 | 104 | 96 | 90 | 90 |
| 1850 | 177 | 177 | 147 | 147 | 147 | 147 | 119 | 119 | 119 | 119 | 119 | 111 | 104 | 104 |
| 2250 | 181 | 181 | 181 | 181 | 145 | 145 | 145 | 145 | 145 | 137 | 125 | 125 | ||
| 2450 | 197 | 197 | 197 | 197 | 158 | 158 | 158 | 158 | 158 | 148 | 139 | 139 | ||
| Pipe dia | ||||||||||||||
| mm Normal pipe diameter | Φ150 | Φ200 | Φ250 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ700 | |||||
| mm Actual outer diameter | 165 | 218 | 282 | 308 | 361 | 457 | 543 | 640 | 728 | |||||
| mm Width | 650 | 800 | 1000 | 1100 | 1300 | 1600 | 1850 | 2250 | 2450 | |||||
