Corrugated Sidewall Conveyor Belt

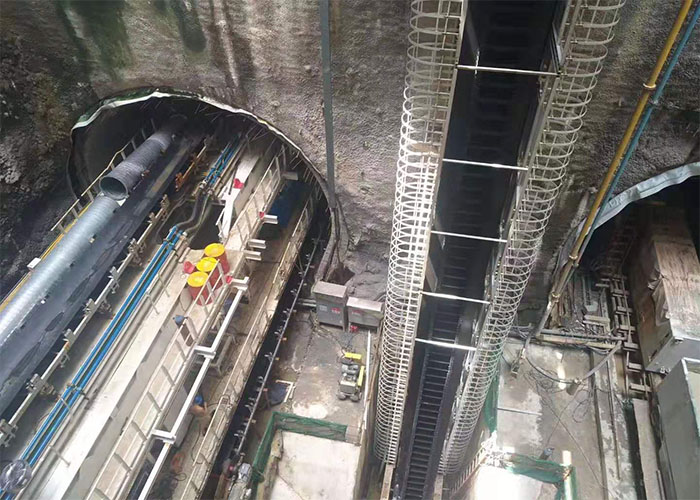

Usage:
Because of the space limitation or in case of lifting materials at large slope, The sidewall conveyor belt is often used to prevent scatter of conveyed materials ,It is suitable for coneying materials at a large slope from 0 degree to 90 degrees.

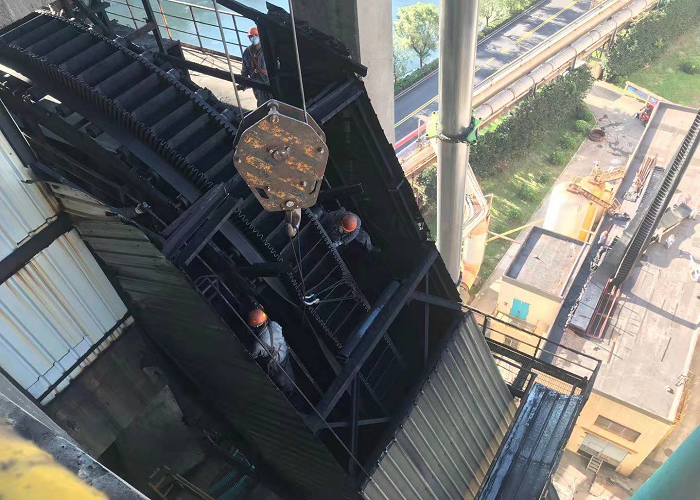

Our product are widely used in steel factory, cement factory ,port etc.

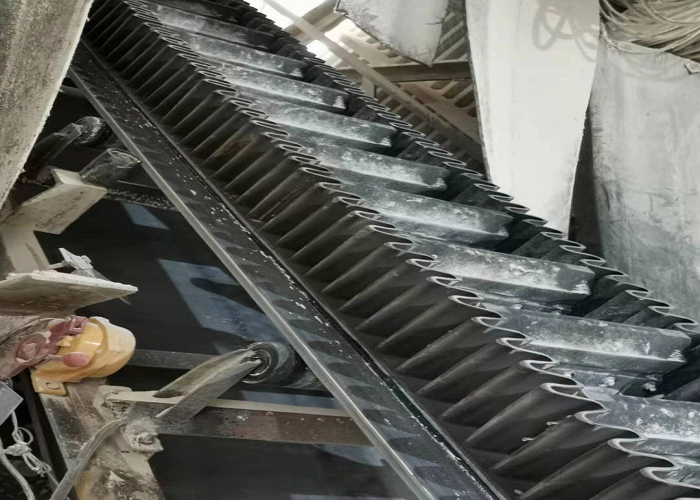

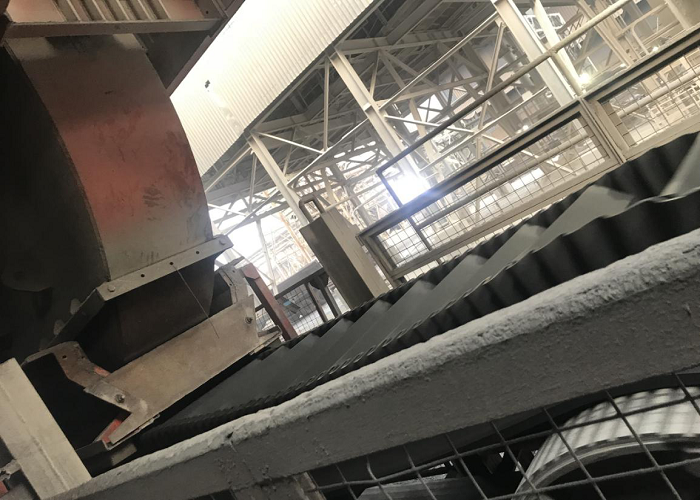

Advantages:
· Space-saving Inclines of up to 90° possible
· Belts are easy on material transported
· Direction of feed and discharge can be different.
Specification:
The high-incline conveyor belt range offers a broad selection
of individually combinable corrugated sidewalls and cleats. In this way
Base belt Construction
TYPE | STRENGTH | COVER THICKNESS | WEIGHT | Min.Pulley Dia |
XE | 250/2 | 2:2 | 9.40 | 200 |
400/3 | 4:2 | 13.50 | 315 | |
XE+2 | 400/3+2 | 4:2 | 12.10 | 315 |
500/3+2 | 4:2 | 12.60 | 400 | |
630/4+2 | 4:2 | 14.40 | 500 | |
800/5+2 | 4:2 | 16.10 | 630 | |
1000/5+2 | 4:2 | 17.80 | 800 | |
1250/5+2 | 4:2 | 18.25 | 1000 | |
XE-SC+2 | 315/2+2 | 4:2 | 13.70 | 315 |
400/3+2 | 4:2 | 14.80 | 315 | |
500/3+2 | 4:2 | 15.20 | 400 | |
630/4+2 | 4:2 | 16.70 | 500 | |
800/5+2 | 4:2 | 18.00 | 630 | |
1000/5+2 | 4:2 | 19.50 | 800 | |
1250/5+2 | 4:2 | 21.40 | 1000 | |
XST-SC* | 1600 | 8:8 | please inquiry | 1250 |
2000 | 8:8 | 1250 | ||
2500 | 8:8 | 1400 | ||
3150 | 8:8 | 1400 | ||
3500 | 8:8 | 1600 | ||
4500 | 8:8 | 1600 | ||
5000 | 8:8 | 1600 | ||
5400 | 8:8 | 1800 | ||
6000 | 8:8 | 1800 |
Sidewall Contruction
Tyre | H(mm) | SW(mm) | TW(mm) | p(mm) | EST weight(kg/m) |
S | 40 | 30 | 20 | 25 | 0.45 |
60 | 50 | 45 | 40 | 1.38 | |
80 | 50 | 45 | 40 | 1.7 | |
100 | 50 | 45 | 40 | 2 | |
120 | 50 | 45 | 40 | 2.65 | |
MDSF | 120 | 75 | 65 | 63.5 | 3.2 |
160 | 75 | 65 | 63.5 | 4.2 | |
200 | 75 | 65 | 63.5 | 5.02 | |
240 | 75 | 65 | 63.5 | 7.5 | |
250 | 75 | 65 | 63.5 | 7.8 | |
280 | 75 | 65 | 63.5 | 8.7 | |
300 | 75 | 65 | 63.5 | 9.4 | |
HHDF | 300 | 100 | 90 | 83 | 10.1 |
400 | 100 | 90 | 83 | 14.8 | |
500 | 105 | 95 | 89 | 19.1 |
Cleat Construction :
Cleat type | Height(mm) | Base width(mm) | EST weight(kg/m) | Min.Pulley Dia(mm) |
C | 55 | 100 | 1.45 | 125 |
75 | 100 | 2.00 | 150 | |
90 | 110 | 2.81 | 250 | |
110 | 110 | 3.27 | 315 | |
T | 55 | 100 | 1.61 | 125 |
75 | 100 | 2.20 | 150 | |
90 | 110 | 2.70 | 250 | |
110 | 110 | 3.23 | 315 | |
140 | 160 | 5.49 | 400 | |
180 | 160 | 6.67 | 500 | |
230 | 160 | 8.60 | 630 | |
TC | 55 | 75 | 1.13 | 125 |
75 | 100 | 1.82 | 150 | |
90 | 110 | 3.22 | 250 | |
110 | 110 | 3.94 | 315 | |
140 | 150 | 5.49 | 400 | |
180 | 150 | 6.81 | 500 | |
230 | 160 | 8.68 | 630 | |
280 | 180 | 14.90 | 800 | |
TC-XS | 230 | 160 | 13.80 | 630 |
280 | 160 | 15.30 | 800 | |
360 | 230 | 22.80 | 1000 | |
470 | 230 | 30.80 | 1250 |
The designing of the Sidewall Conveyor Belt
Technical data | |||||
Base belt width(mm) | Sidewall height(mm) | Cleat height(mm) | Width of base sidewall(mm) | Length of cleat(mm) | Lensert(mm) |
BW | H | CH | SW | CW | FS |
400 | 60 | 55 | 50 | 180 | 60 |
80 | 75 | ||||
100 | 90 | ||||
500 | 80 | 75 | 50 | 250 | 75 |
100 | 90 | ||||
120 | 110 | ||||
650 | 100 | 90 | 50 | 350 | 100 |
120 | 110 | ||||
160 | 140 | 75 | 300 | ||
800 | 120 | 110 | 50 | 460 | 120 |
160 | 140 | 75 | 410 | ||
200 | 180 | ||||
1000 | 160 | 140 | 75 | 550 | 150 |
200 | 180 | ||||
240 | 220 | ||||
1200 | 160 | 140 | 75 | 690 | 180 |
200 | 180 | ||||
240 | 220 | ||||
300 | 280 | 105 | 630 | ||
1400 | 200 | 180 | 75 | 830 | 210 |
240 | 220 | ||||
300 | 280 | 105 | 770 | ||
400 | 360 | ||||
1600 | 200 | 180 | 75 | 970 | 240 |
240 | 220 | ||||
300 | 280 | 105 | 910 | ||
400 | 360 | ||||
1800 | 240 | 220 | 75 | 1110 | 270 |
300 | 280 | 105 | 1050 | ||
400 | 360 | ||||
500 | 460 | 125 | 1010 | ||
